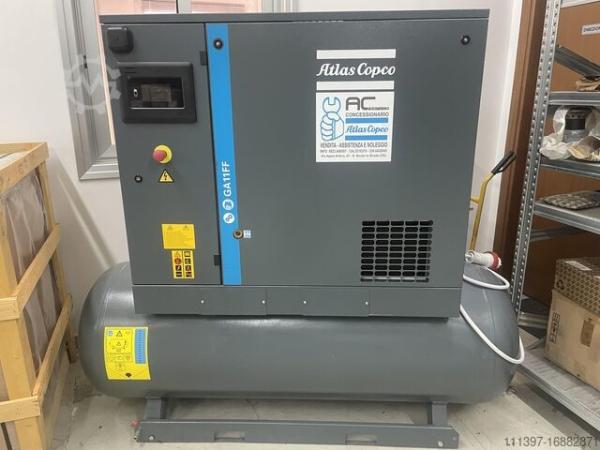

GA 11: Compact compressed air system
• Low initial investment, high quality and convenient service
• Integrated dryer (FF model) for dry and clean compressed air
• Elektronikon® slider controller for efficient control
1.Durable and efficient motor and rotor - The GA11-26 features a new rotor and IE2/IE3 high-efficiency motor for durability and efficiency.
- Gear drives are more efficient than belt drives.
- Gear drives are highly reliable and easier to maintain.
2.Newly upgraded monitoring system
- New Elektronikon® Slide Key Screen Controller with built-in intelligent algorithms thatoptimises system pressure and reduces energy consumption.
- Remote start/stop, fault alarm and maintenance reminder.
- Built-in SMARTLINK remote monitoring, mastering the real-time system status.
3.Easy Installation
- FF model with built-in dryer, plug and play, avoiding installation trouble.
- Small footprint, easy to install and transport.
4.All-in-one compressed air solution - Individual cooling fans, high-efficiency coolers and a built-in dryer with a pressure dew point of 5°C.Avoids condensation and corrosion in the pipework.
- The integrated dryer has a non-destructive electronic drain valve to avoid loss of compressed air.
- Optional filters reduce the oil content of compressed air to <0.01ppm.
5.High-tech oil and gas separator
- The new vertical design of the oil-air separator reduces oil residues and avoids oil contamination.
- The optimised volume of the oil/air separator reduces the loss of compressed air during loading and unloading.Compressed air losses during loading and unloading are minimised by the appropriate oil-air separator volume design.
Options to meet your needs
| | GA11-26 |
| Integrated filter Class 1(ONLY FF) | · |
| Integrated filter Class 2(ONLY FF) | · |
| High ambient temperature versions(55°C for pack, 50°C for FF) | · |
| Synthetic oil | · |
| Elektronik on graphic controller | · |
| Wooden package | · |
| Food-grade oil | · |
| Condensate water separator and auto drain | · |
| Dryer Bypass | - |
| Field Witness Testing | · |
| Test report | · |
| High temperature tropical thermostatic valve | · |
| ·:Optional -:Not available |
Technical specifications:
| Type | Maximum working pressure | FAD* | Motor power | Noise | Weight | Outlet |
| Standard | FF | Standard | FF |
| bar(e) | psig | bar(e) | psig | I/s | m³/min | cfm | kW | hp | dB(A) | kg | kg | |
| GA11 | 7.5 | 7.5 | 109 | 7.3 | 105 | 34.2 | 2.05 | 72.4 | 11 | 15 | 68 | 416 | 469 | G1 |
| 8.5 | 8.5 | 123 | 83 | 120 | 32.0 | 1.92 | 67.8 | 11 | 15 | 68 | 416 | 469 | G1" |
| 10.5 | 10.5 | 152 | 103 | 149 | 25.8 | 1.55 | 54.7 | 11 | 15 | 68 | 416 | 467 | G1" |
| 13 | 13 | 189 | 12.8 | 185 | 22.0 | 1.32 | 46.6 | 11 | 15 | 68 | 416 | 465 | G1" |
| 16 | 16 | 232 | 15.8 | 229 | 19.2 | 1.15 | 40.6 | 11 | 15 | 68 | 416 | 497 | G1" |
Dimenssions:
L: 1225 mm
W: 695 mm
H: 1475 mm
